Centimeters to Spare: A Complex Reactor Barge Operation
- May 13
- 3 min read
Updated: May 15
In the world of project logistics and oversize transport, no two voyages are identical. Every cargo presents unique structural dimensions, and every waterway introduces its own variables. Out of the numerous barge operations executed each year, one recent project highlighted exactly how critical technical precision becomes when physical space is at an absolute premium.
The objective: transport two industrial reactors of massive magnitude. While moving cargo of this scale always requires rigorous planning, the true complexity of this operation lay in the constraints of the vessel—accommodating both units onto a relatively small barge with only a few centimeters of leeway.
Here is an engineering and operational breakdown of how the team navigated a high-consequence transport requiring exact execution
The Challenge: Heavy-Lift Cargo on a Constrained Vessel
The core difficulty of this project lay in the sheer scale of the cargo contrasted with the physical limitations of the transport vessel. The two reactors featured the following specifications:
Weight: 750 tons and 550 tons
Length: 40.5 meters
Diameter: 6.6 meters

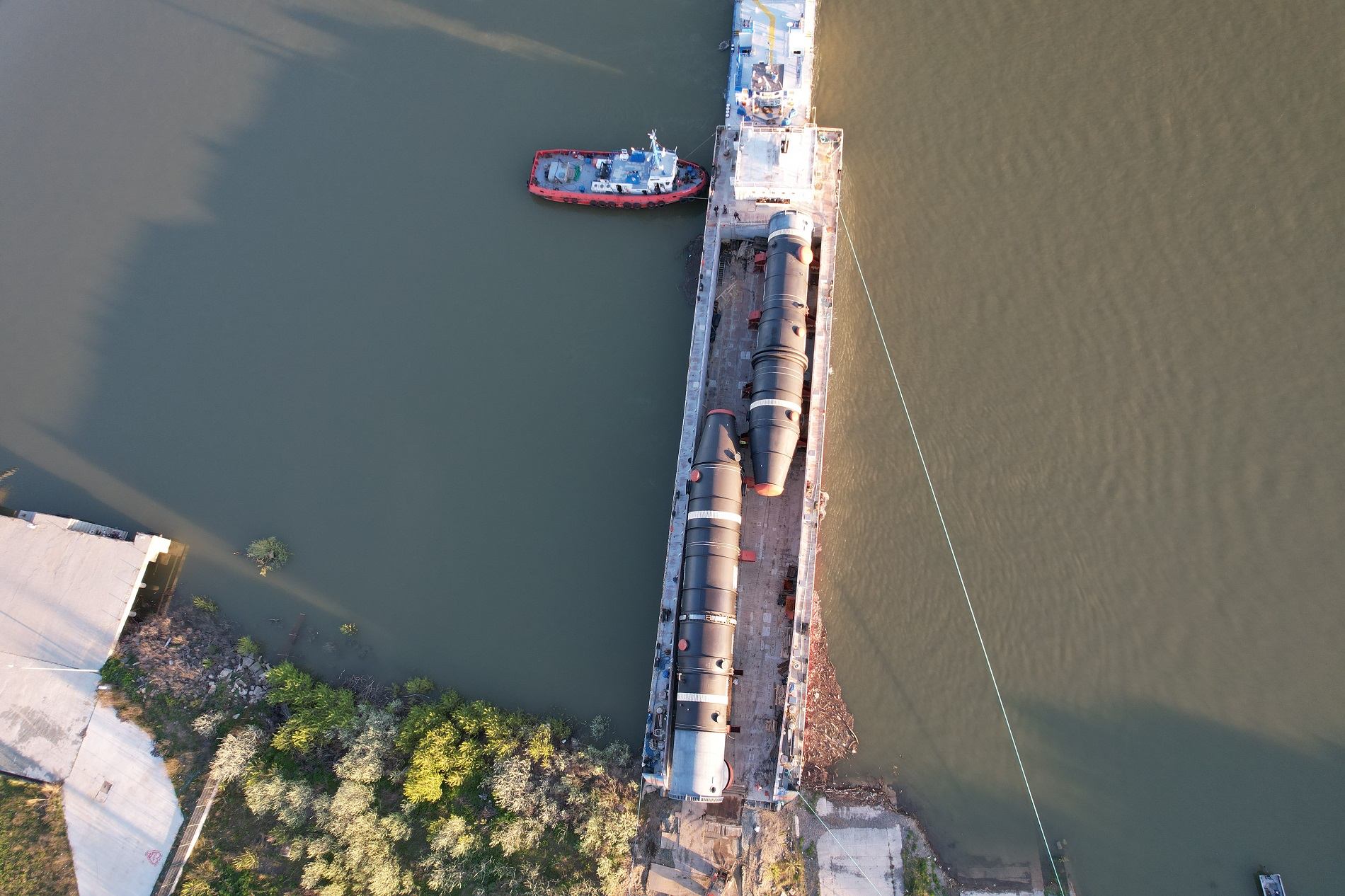

Transporting two pieces of equipment of this magnitude represents a significant logistical undertaking under any circumstances. However, the true complexity of this operation was accommodating both reactors onto a tight space available on the barge.
Precision Engineering: The Ro/Ro Loading Process

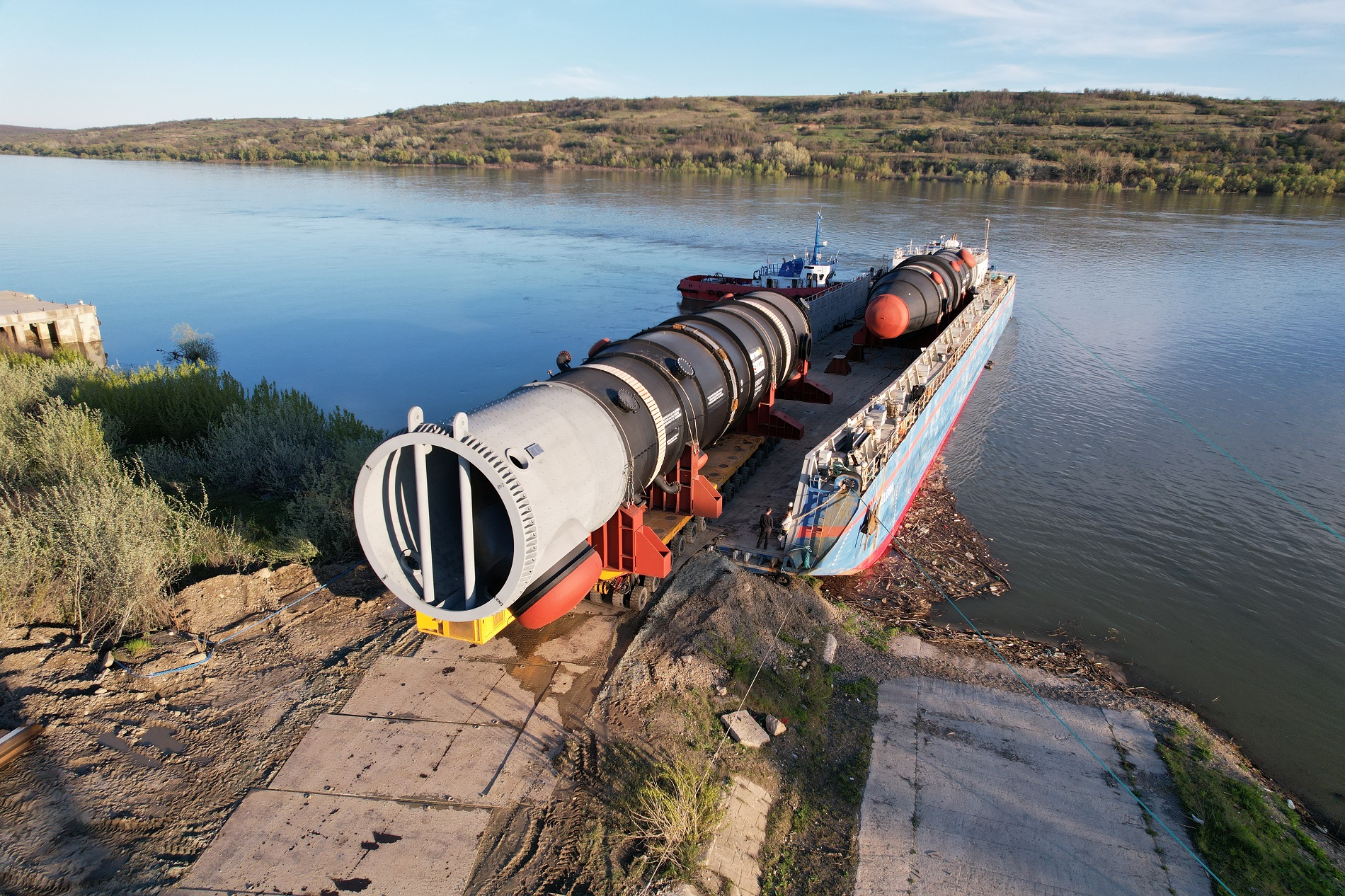

To overcome the spatial constraints, the Eastship team utilized a precise Roll-on/Roll-off (Ro/Ro) loading method.
Because the barge was relatively small for cargo of this scale, maintaining stability was critical. Our team engineered a meticulous loading plan to ensure that the weight distribution remained perfectly balanced and stable, not just during the initial roll-on phase, but throughout the entire voyage.
Comprehensive Cargo Securing and Monitoring
To maintain the safety and efficiency of the transport from start to finish, Eastship managed every phase of the operation internally:
Lashing Plan Development: Custom engineering designs were created to calculate load securing requirements.
Execution: The physical lashing was completed by our team to guarantee the reactors remained completely secure.
En-Route Support: We provided continuous monitoring and operational support throughout the journey to safeguard both the cargo and the crew.
Navigating Logistics and Regulatory Requirements
The hurdles for this project extended beyond physical dimensions and weight distribution. Moving oversized cargo requires navigating a complex web of logistical and regulatory frameworks.
The Eastship team managed the end-to-end administration for the voyage, which included securing all necessary permits and approvals from the relevant authorities. Additionally, we maintained close coordination with all project stakeholders to ensure alignment across every stage of the operation.
irect Transshipment: Barge-to-Ship Handling

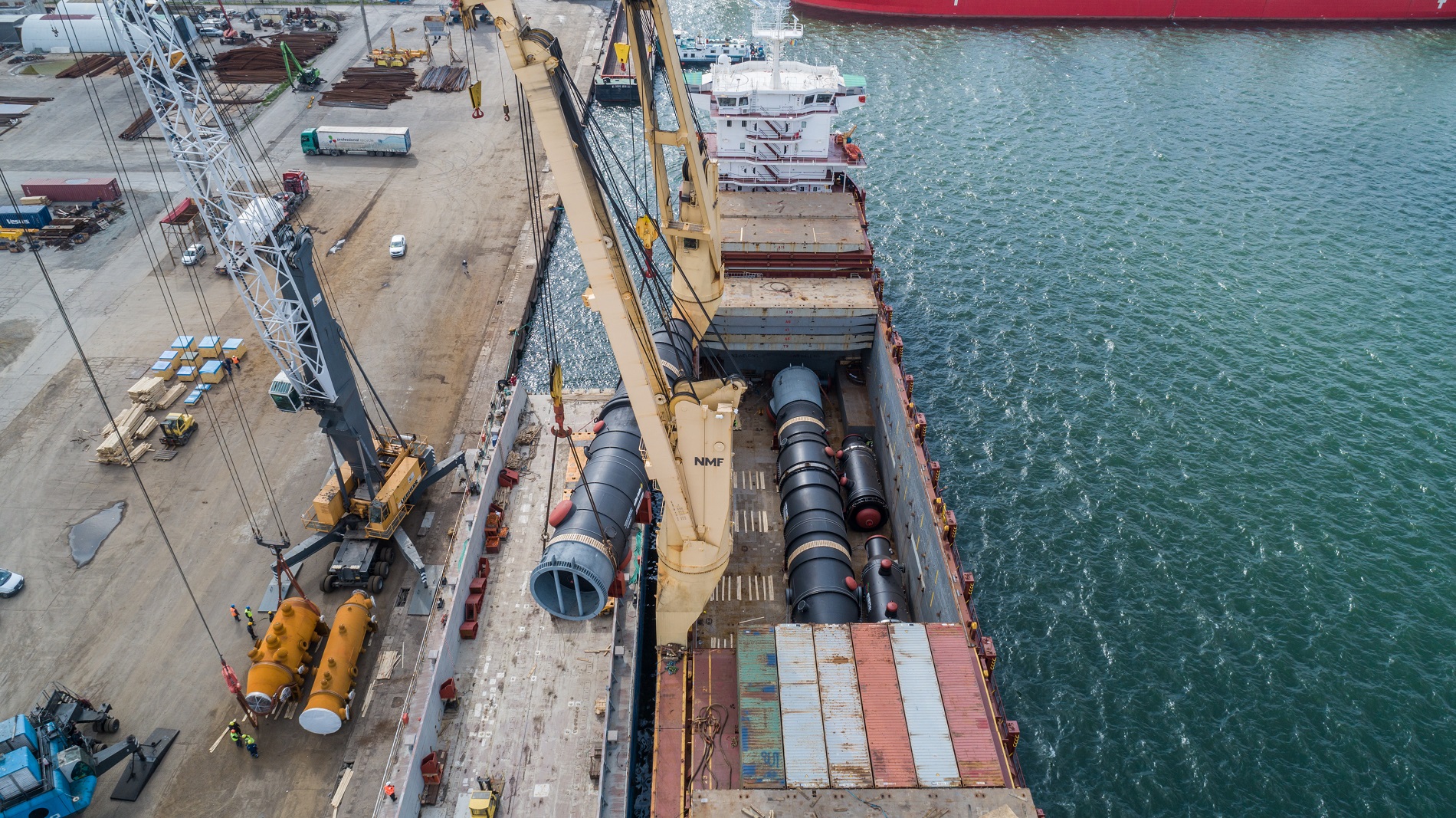

The final phase of this operation required seamless coordination at the terminal. Upon arrival at Constanța South Port, the units did not require intermediate storage or double handling on the quay. Instead, the reactors were transshipped directly from the barge onto the ocean-going vessel.

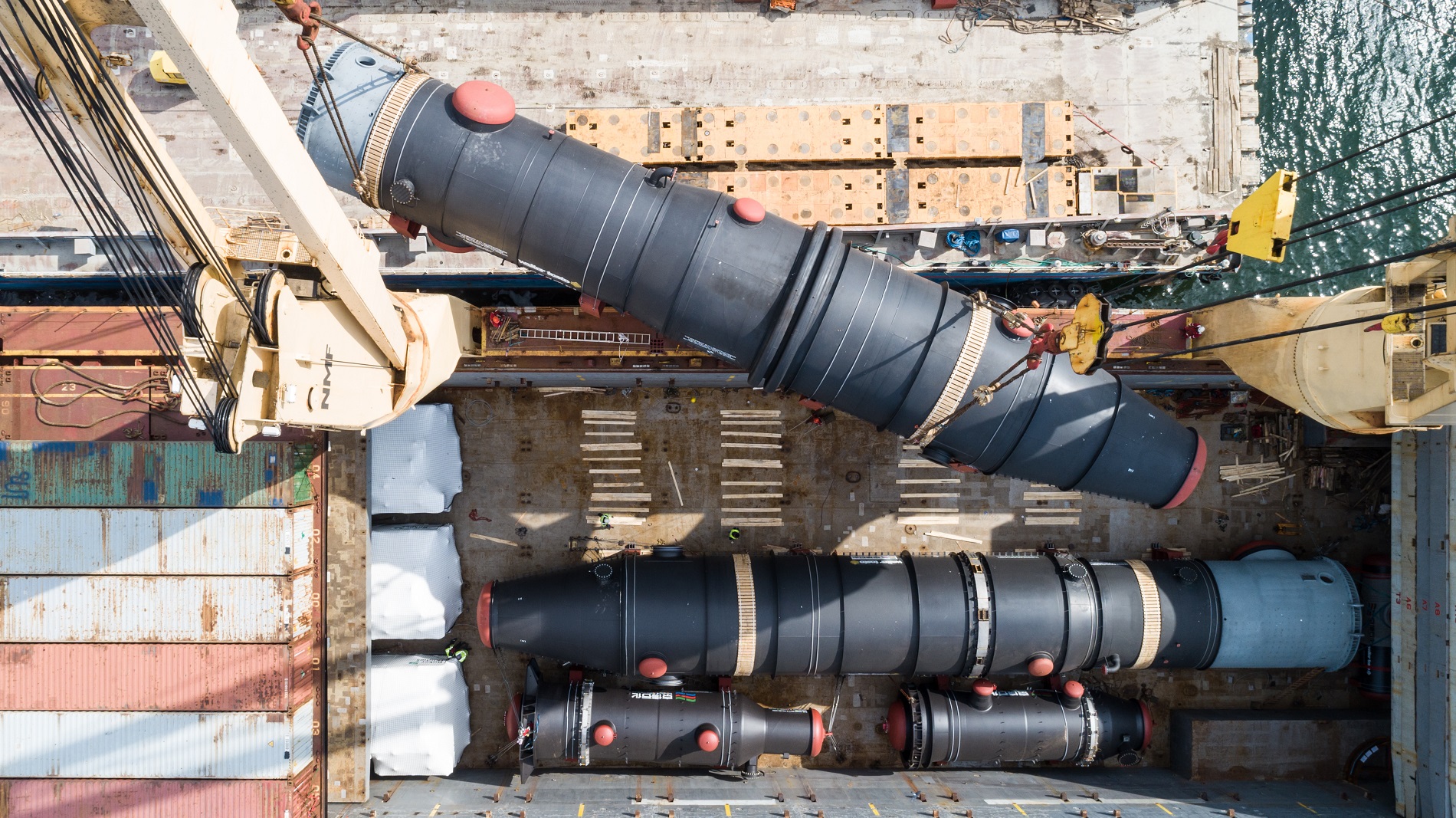

This direct transborder maneuver was executed utilizing the ship's heavy-lift cranes. By lifting the 750-ton and 550-ton structures directly from the floating barge to the ship, the operation minimized handling risks, optimized terminal time, and maintained the strict safety protocols required for cargo of this magnitude.
Delivering Results with Centimeter Precision
Despite the potential risks associated with moving heavy-lift technical equipment, the operation was completed safely and efficiently. The reactors were successfully delivered to their destination with only a few centimeters of leeway to spare on the barge.
This project stands as a clear example of Eastship’s ability to deliver innovative solutions for highly challenging transport demands, managing every technical, logistical, and regulatory detail from inception to completion.
